Build with Code and AI

This "Hello, World" style guide demonstrates how to build a code-native integration using Prismatic's TypeScript SDK and AI skills.

Recommended: Use Claude to build your integration

If you use an AI coding assistant like Claude Code you can leverage Prismatic's AI skills to build your integration faster. These skills provide your AI agent with example code snippets, efficient documentation lookup, and best practice guidance.

Install Prismatic's AI skills in your coding assistant

Open claude and run the following commands to install Prismatic's marketplace and skills

Install Prismatic's AI marketplace and skills

/plugin marketplace add prismatic-io/prismatic-skills
/plugin install prismatic-skills@prismatic-skills
/reload-plugins

Invoke the build-integration skill with a prompt describing your integration

Next, invoke your newly-installed build-integration command and skill with a prompt describing the integration you want to build

Prompt Claude to build your integration

/prismatic-skills:build-integration Build a Prismatic code-native integration
named `TODO List Slack Notifications`. This integration will fetch an array
of todo items from a REST API endpoint. Each item will have a `completed`
boolean property and `task` string property.

For each item that is not completed, the integration will post a message to
a Slack channel with the task details.

This integration should:
- Use a configuration variable for the REST API endpoint URL, which defaults
  to `https://my-json-server.typicode.com/prismatic-io/placeholder-data/todo`
- Use a Slack OAuth connection for authentication - the build-only OAuth
  connection is fine for now
- Prompt a user to select one of their Slack channels from a dropdown menu
- Run on a schedule each day at 8:00 AM UTC

Your AI assistant will scaffold a new project, install dependencies, write the flows, configure the Slack OAuth connection, and import the integration into your Prismatic tenant for testing. See full agent skills documentation.

Get started from scratch

If you prefer to learn by building the integration step-by-step yourself, follow the steps below to scaffold a new code-native integration. Our example integration will:

1. Be configurable with a REST API endpoint config variable and a Slack channel dropdown menu
2. Fetch a list of TODO items from a REST API endpoint
3. Check each item for a completed boolean property
4. For each incomplete item, post a message to a Slack channel with the task details

Prerequisites

• Install a recent version of Node.js
• Install Prismatic's CLI tool and authenticate it against your Prismatic tenant
• Authenticate a Slack connection by navigating to Components > Slack > Connections in the Prismatic web app, selecting the Build Only connection, and clicking Connect.

Initialize a new integration project

Use the prism CLI tool to scaffold a new code-native integration project:

prism integrations:init todo-slack-notifications

This creates a new directory called todo-slack-notifications. Open this directory in your code editor and then install the project's dependencies

npm install

Finally, delete src/flows.test.ts and src/client.ts - we'll cover unit testing and creating reusable HTTP clients in another guide.

Remove extraneous files

rm src/client.ts src/flows.test.ts

Install the Slack component manifest

Our integration will rely on the built-in Slack component, so we need to install the Slack component manifest into our project:

npx cni-component-manifest slack

This will create a set of files in src/manifests/slack that define the Slack component's actions, connections, triggers, and data sources.

Next, add Slack to your component registry:

src/componentRegistry.ts

import { componentManifests } from "@prismatic-io/spectral";
import slack from "./manifests/slack";

export const componentRegistry = componentManifests({ slack });

Create a configuration experience

For this integration, we want our users to:

1. Provide the endpoint for the REST API that the integration will fetch todo items from
2. Select a Slack channel from a dropdown menu to post incomplete tasks to

We'll add a basic config variable for the REST API, and we'll use a data source to fetch the list of Slack channels and present them as a picklist dropdown menu.

For simplicity, we'll leverage a build-only connection, which is a connection that exists for development and testing purposes - for production, you'd want to create your own Slack OAuth app.

src/configPages.ts

import { configPage, configVar } from "@prismatic-io/spectral";
import { slackReusableConnection } from "./manifests/slack/connections";
import { slackSelectChannels } from "./manifests/slack/dataSources/selectChannels";

export const configPages = {
  Configuration: configPage({
    elements: {
      "Slack Connection": slackReusableConnection(
        // Replace this with your own UUID. See src/manifests/slack/connections/index.ts
        "12345678-0000-0000-0000-000000000000",
      ),
      // Include some helper text to guide users through the configuration experience
      _helperText0: "<h2>Integration Configuration</h2>",
      _helperText1:
        "<p>Please provide the API endpoint for your todo items and select a Slack " +
        "channel where you'd like to receive notifications of incomplete tasks.</p>",
      "TODO API Endpoint": configVar({
        stableKey: "todo-api-endpoint",
        dataType: "string",
        defaultValue:
          "https://my-json-server.typicode.com/prismatic-io/placeholder-data/todo",
      }),
      "Slack Channel": slackSelectChannels("slack-channel", {
        connection: { configVar: "Slack Connection" },
      }),
    },
  }),
};

Finding your build-only connection UUID

Each organization has a distinct build-only connection ID for testing. Look at src/manifests/slack/connections/index.ts to find the slackReusableConnection's stableKey for your tenant.

Build a flow to fetch TODO items and post incomplete ones to Slack

Now that our integration is configurable, we'll build a flow that runs on a schedule, fetches the list of TODO items from the configured REST API endpoint, and uses the Slack component to post messages to the configured Slack channel for each incomplete task.

src/flows.ts

import { flow } from "@prismatic-io/spectral";
import axios from "axios";

interface TodoItem {
  id: number;
  completed: boolean;
  task: string;
}

export const checkTodoItems = flow({
  name: "Check Todo Items",
  stableKey: "check-todo-items",
  description:
    "Fetch todo items from an API and send message for incomplete items.",
  schedule: { value: "0 8 * * *" }, // Run each day at 8:00 AM UTC
  onExecution: async (context) => {
    const response = await axios.get<TodoItem[]>(
      context.configVars["TODO API Endpoint"],
    );
    const todoItems = response.data;
    for (const todoItem of todoItems) {
      if (todoItem.completed) {
        context.logger.info(
          `Task ${todoItem.id} is completed: ${todoItem.task}`,
        );
      } else {
        await context.components.slack.postMessage({
          connection: context.configVars["Slack Connection"],
          channelName: context.configVars["Slack Channel"],
          message: `Task ${todoItem.id} is incomplete: ${todoItem.task}`,
        });
      }
    }
    return { data: null };
  },
});

export default [checkTodoItems];

Build and import your integration

Now it's time to build your integration

Build the integration

npm run build

Finally, import your integration and open it in the Prismatic web app

Import and open the integration in Prismatic

prism integrations:import --open

Test your integration

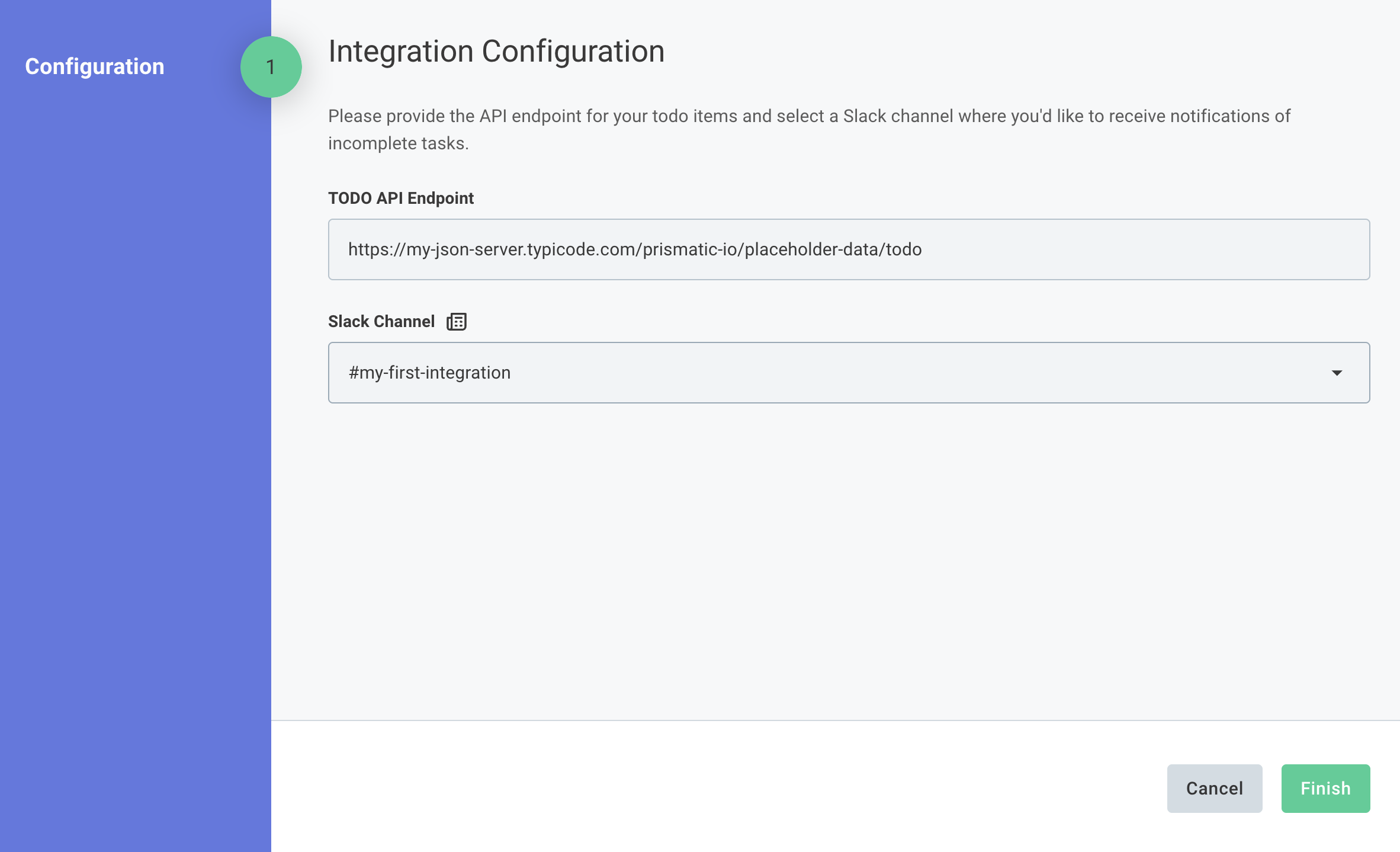

Once the integration opens in your browser, navigate to Test Configuration > Test Instance Configuration and walk through the config wizard.

After completing the configuration, trigger a test execution of your flow by clicking Test in the top right of the page.
