GitHub Actions

If you've purchased multiple Prismatic tenants, you likely build your integrations and components in one tenant that you've designated for development, and then publish them to other tenants that you've designated for production.

The Prismatic GitHub Actions allow you to automate the process of publishing your integrations and components that you've tested in your development tenant to your production tenant(s).

Setting up authentication for GitHub Actions

Prismatic's integration-publisher and component-publisher GitHub Actions use the prism CLI tool to publish integrations and components to Prismatic. To authenticate the GitHub Actions with your Prismatic tenant(s), you'll need to create a Prismatic refresh tokens for each tenant.

To do that, install prism and log in, and then print your refresh token. This example shows how to create a refresh token for a tenant in the Australia region:

Create a Prism Refresh Token

$ export PRISMATIC_URL=https://app.ap-southeast-2.prismatic.io

$ prism login
Press any key to open prismatic.io in your default browser:
Login complete!

$ prism me:token --type refresh
X-1111111111111111111111111111_00000000000000

Set up GitHub secrets

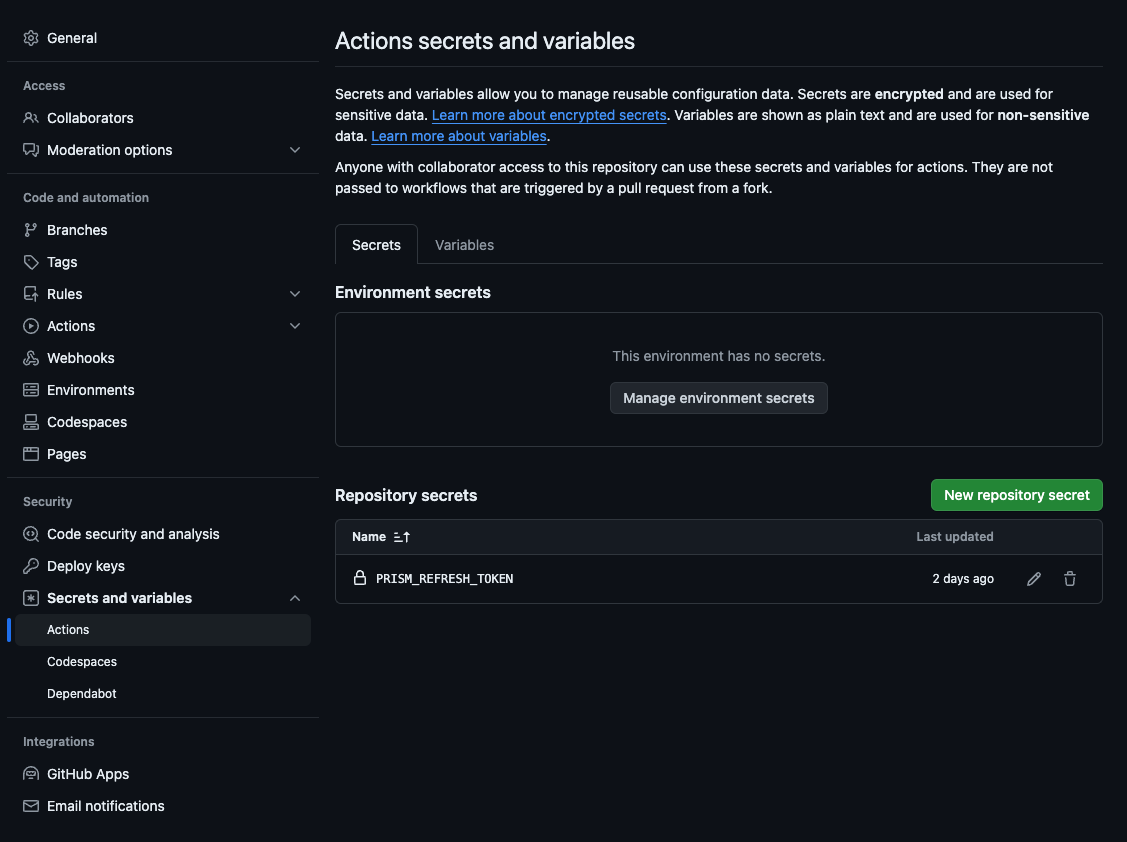

Take note of the URL of the region you're working with as well as your refresh token from above. Then, within your GitHub repo select Settings -> Secrets and variables -> Actions. Save a new secret with whatever name you'd like (if you have one region, maybe call it PRISM_REFRESH_TOKEN, or if you have multiple regions, you might call it PRISM_REFRESH_TOKEN_AUSTRALIA).

The value of the secret should be the refresh token you generated above.

It may be helpful to make the Prismatic URL a GitHub variable as well, especially if you have multiple regions.

Publishing components with GitHub Actions

To publish a component automatically, use the component-publisher GitHub Action. Your component should be checked out, dependencies installed, and built before running the action.

In this example, we check out our repository, install NodeJS, install dependencies with yarn (though you may use npm, pnpm, bun, etc), and then we build the component (again with yarn in our case). This example also assumes that our component is located in the components/acme-crm directory - if your repository has the component at the root, you can remove the working-directory and COMPONENT_PATH lines:

.github/workflows/publish-component.yml

name: Publish Acme Component

# Only run when code lands on the main branch
on:
  push:
    branches:
      - main

jobs:
  # Build and publish Acme CRM component
  acme_component:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - uses: actions/setup-node@v4.0.2
      - name: Install dependencies
        run: yarn install
      - name: Build Acme CRM Component
        run: yarn build
        working-directory: components/acme-crm
      - name: Publish Acme CRM Component
        uses: prismatic-io/component-publisher@v1.1
        with:
          COMPONENT_PATH: components/acme-crm
          PRISMATIC_URL: ${{ vars.PRISMATIC_URL }}
          PRISM_REFRESH_TOKEN: ${{ secrets.PRISM_REFRESH_TOKEN }}

In addition to the COMPONENT_PATH, PRISMATIC_URL, and PRISM_REFRESH_TOKEN variables, the component-publisher action also accepts:

• CUSTOMER_ID (optional): The ID of the customer with which to associate the component. Use this if the component is for a specific customer..
• COMMENT (optional): Any comments to associate with the component.
• SKIP_COMMIT_HASH_PUBLISH (optional): Skip inclusion of commit hash in metadata. Default is false.
• SKIP_COMMIT_URL_PUBLISH (optional): Skip inclusion of commit URL in metadata. Default is false.
• SKIP_REPO_URL_PUBLISH (optional): Skip inclusion of repository URL in metadata. Default is false.
• SKIP_PULL_REQUEST_URL_PUBLISH (optional): Skip inclusion of pull request URL in metadata. Default is false.

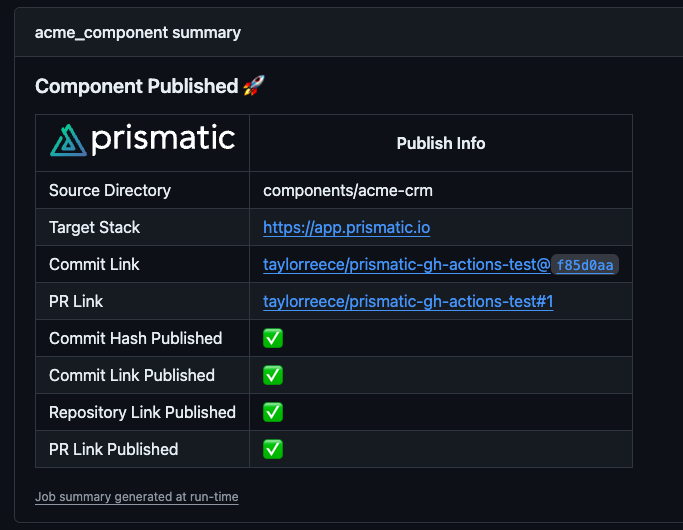

When a component-publisher action completes, you will see a summary of the job in the Actions tab of your GitHub repository.

If no changes are detected, component publishing will be skipped

Prismatic detects if the component has changed since the last publish. If no changes are detected, the component will not be published and instead of a summary screen you will see the message:

Component Not Published 🚫
A component with this signature is already published.

Linking components to pull requests

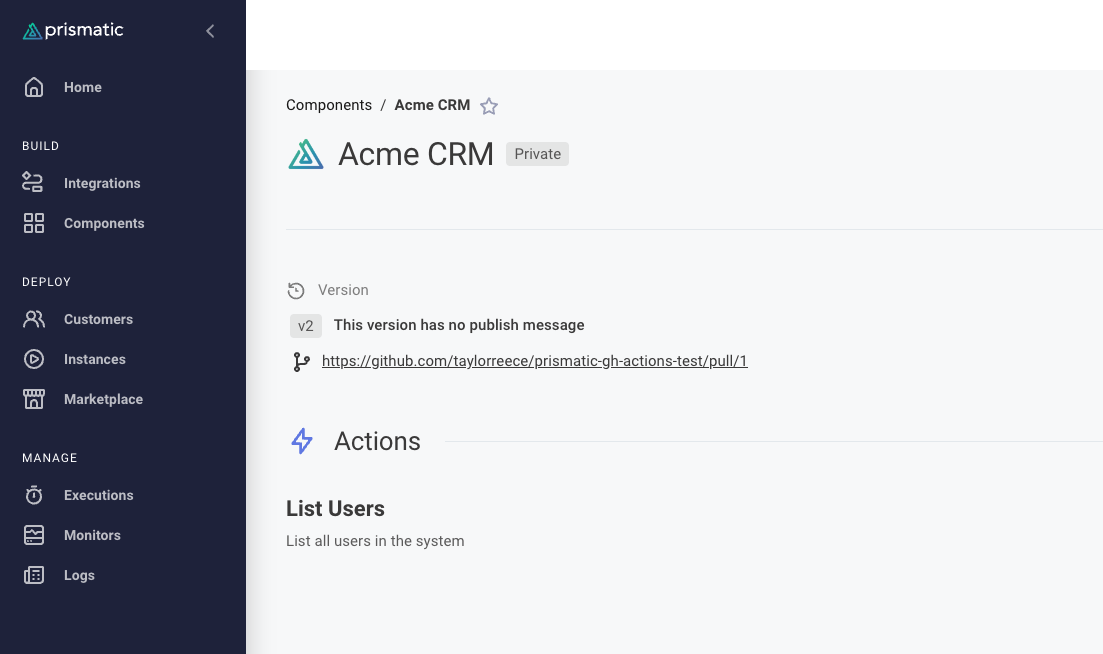

When a component is published using the component-publisher action, the action will automatically include the commit hash, commit URL, repository URL, and pull request URL in the component metadata. When the component is displayed in the UI, these links will be available to integration builders. This is handy for tracking changes to your components.

Publishing integrations with GitHub actions

To publish an integration automatically, use the integration-publisher GitHub Action.

This action requires a couple of parameters in addition to PRISMATIC_URL and PRISM_REFRESH_TOKEN:

• PATH_TO_YML (optional*): The path to the integration yml file that is to be published. See our docs for more information on how to export an integration.
• PATH_TO_CNI (optional*): The path to a code-native integration's source code.
• INTEGRATION_ID (required): The ID of the integration to be published. The integration must be imported manually once into the production tenant before it can be imported automatically with this action. Take note of the ID of the integration when it is imported, which can be found in your browser's URL bar - the ID starts with SW5.
• SKIP_COMMIT_HASH_PUBLISH (optional): Skip inclusion of commit hash in metadata. Default is false.
• SKIP_COMMIT_URL_PUBLISH (optional): Skip inclusion of commit URL in metadata. Default is false.
• SKIP_REPO_URL_PUBLISH (optional): Skip inclusion of repository URL in metadata. Default is false.
• SKIP_PULL_REQUEST_URL_PUBLISH (optional): Skip inclusion of pull request URL in metadata. Default is false.

* You must specify either PATH_TO_YML or PATH_TO_CNI, but not both.

Ensure you export your integration with "LATEST" component versions

If you've published a custom component 100 times in your dev tenant, and 2 times in your prod tenant, then v100 in dev is equivalent to v2 in prod. When you export your integration select "with LATEST". That will ensure that the integration importer will use the latest version of the component that is available in the tenant.

.github/workflows/publish-integration.yml

name: Acme-Hooli Integration

# Only run when code lands on the main branch
on:
  push:
    branches:
      - main

jobs:
  # Publish Acme-Hooli integration
  acme_hooli_integration:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - name: Publish Integration Component
        uses: prismatic-io/integration-publisher@v1.4
        with:
          PATH_TO_YML: integrations/hooli-acme-integration.yml
          PRISMATIC_URL: ${{ vars.PRISMATIC_URL }}
          PRISM_REFRESH_TOKEN: ${{ secrets.PRISM_REFRESH_TOKEN }}
          INTEGRATION_ID: ${{ vars.ACME_HOOLI_INTEGRATION_ID_US_PROD}}
          MAKE_AVAILABLE_IN_MARKETPLACE: false

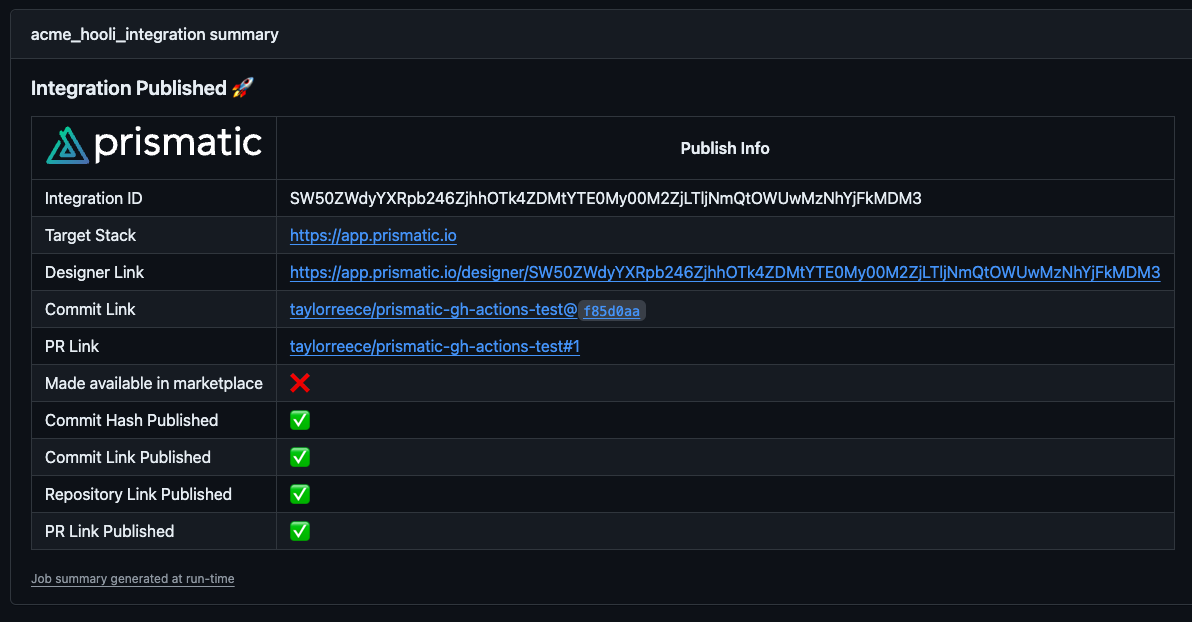

When a integration-publisher action completes, you will see a summary of the job in the Actions tab of your GitHub repository.

Linking integration versions to pull requests

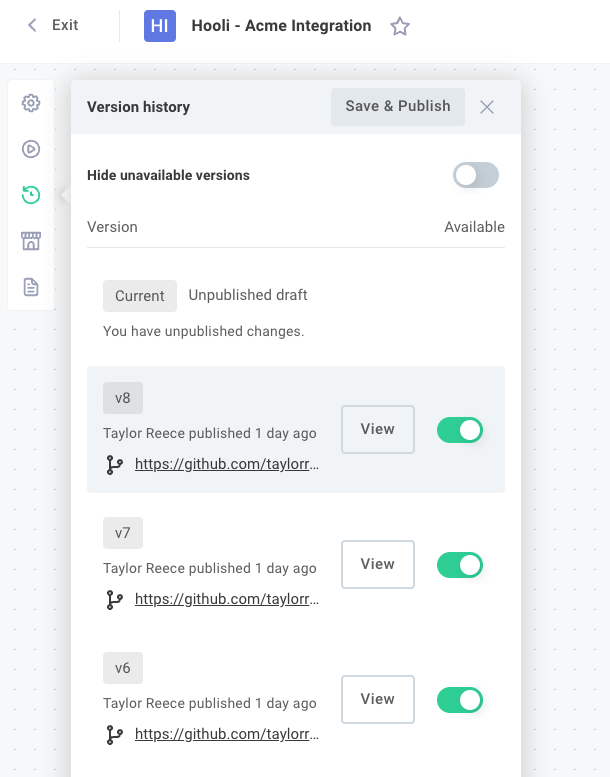

When an integration is published using the integration-publisher action, the action will automatically include the commit hash, commit URL, repository URL, and pull request URL in the integration metadata. When the integration version is displayed in the UI in the version history drawer, these links will be available to integration builders.

Ensuring your components are published before your integrations

If your integration depends on a custom component, you'll want to ensure that the component is published before the integration. You can do this by adding a needs key to your integration job that references the component job.

In this example, we publish two components (acme-crm and hooli-crm) and one integration (hooli-acme-integration). We also leverage the paths-filter action to only run publish steps when changes occurred in our component or integration.

.github/workflows/acme-hooli-integration.yml

name: Acme-Hooli Integration CI

on:
  push:
    branches:
      - main

jobs:
  # Build and publish Acme CRM component
  acme_component:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - id: filter
        uses: dorny/paths-filter@v3.0.2
        with:
          filters: |
            acme_component:
              - 'components/acme-crm/**'
      - uses: actions/setup-node@v4.0.3
        if: steps.filter.outputs.acme_component == 'true'
      - name: Install dependencies
        run: yarn install
        if: steps.filter.outputs.acme_component == 'true'
      - name: Build Acme CRM Component
        run: yarn build
        working-directory: components/acme-crm
        if: steps.filter.outputs.acme_component == 'true'
      - name: Publish Acme CRM Component
        uses: prismatic-io/component-publisher@v1.3
        with:
          COMPONENT_PATH: components/acme-crm
          PRISMATIC_URL: ${{ vars.PRISMATIC_URL }}
          PRISM_REFRESH_TOKEN: ${{ secrets.PRISM_REFRESH_TOKEN }}
        if: steps.filter.outputs.acme_component == 'true'
      - name: Note if component didn't change
        run: |
          echo "No changes detected for Acme component" >> "$GITHUB_STEP_SUMMARY"
        if: steps.filter.outputs.acme_component != 'true'

  # Build and publish Hooli CRM component
  hooli_component:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - id: filter
        uses: dorny/paths-filter@v3.0.2
        with:
          filters: |
            hooli_component:
              - 'components/hooli-crm/**'
      - uses: actions/setup-node@v4.0.3
        if: steps.filter.outputs.hooli_component == 'true'
      - name: Install dependencies
        run: yarn install
        if: steps.filter.outputs.hooli_component == 'true'
      - name: Build Hooli CRM Component
        run: yarn build
        working-directory: components/hooli-crm
        if: steps.filter.outputs.hooli_component == 'true'
      - name: Publish Hooli CRM Component
        uses: prismatic-io/component-publisher@v1.3
        with:
          COMPONENT_PATH: components/hooli-crm
          PRISMATIC_URL: ${{ vars.PRISMATIC_URL }}
          PRISM_REFRESH_TOKEN: ${{ secrets.PRISM_REFRESH_TOKEN }}
        if: steps.filter.outputs.hooli_component == 'true'
      - name: Note if component didn't change
        run: |
          echo "No changes detected for Hooli component" >> "$GITHUB_STEP_SUMMARY"
        if: steps.filter.outputs.hooli_component != 'true'

  # Publish Acme-Hooli integration after components are published
  acme_hooli_integration:
    runs-on: ubuntu-latest
    needs: [acme_component, hooli_component]
    steps:
      - uses: actions/checkout@v4
      - id: filter
        uses: dorny/paths-filter@v3.0.2
        with:
          filters: |
            integration_or_components:
              - 'integrations/hooli-acme-integration.yml'
              - 'components/**'
      - name: Publish Integration Component
        uses: prismatic-io/integration-publisher@v1.4
        with:
          PATH_TO_YML: integrations/hooli-acme-integration.yml
          PRISMATIC_URL: ${{ vars.PRISMATIC_URL }}
          PRISM_REFRESH_TOKEN: ${{ secrets.PRISM_REFRESH_TOKEN }}
          INTEGRATION_ID: ${{ vars.ACME_HOOLI_INTEGRATION_ID_US_PROD }}
          MAKE_AVAILABLE_IN_MARKETPLACE: false
        if: steps.filter.outputs.integration_or_components == 'true'
      - name: Note if integration didn't change
        run: |
          echo "No changes detected for integration or underlying components" >> "$GITHUB_STEP_SUMMARY"
        if: steps.filter.outputs.integration_or_components != 'true'

  acme_code_native_integration:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - id: filter
        uses: dorny/paths-filter@v3.0.2
        with:
          filters: |
            acme_code_native_integration:
              - 'integrations/acme-code-native/**'
      - uses: actions/setup-node@v4.0.3
        if: steps.filter.outputs.acme_code_native_integration == 'true'
      - name: Install dependencies
        run: yarn install
        if: steps.filter.outputs.acme_code_native_integration == 'true'
      - name: Build Code-Native Integration
        run: yarn build
        working-directory: integrations/acme-code-native
        if: steps.filter.outputs.acme_code_native_integration == 'true'
      - name: Publish Integration
        uses: prismatic-io/integration-publisher@v1.4
        with:
          PATH_TO_CNI: integrations/acme-code-native
          PRISMATIC_URL: ${{ vars.PRISMATIC_URL }}
          PRISM_REFRESH_TOKEN: ${{ secrets.PRISM_REFRESH_TOKEN }}
          INTEGRATION_ID: ${{ vars.ACME_CODE_NATIVE_INTEGRATION_ID_US_PROD }}
          MAKE_AVAILABLE_IN_MARKETPLACE: false
        if: steps.filter.outputs.acme_code_native_integration == 'true'
      - name: Note if integration didn't change
        run: |
          echo "No changes detected for integration" >> "$GITHUB_STEP_SUMMARY"
        if: steps.filter.outputs.acme_code_native_integration != 'true'

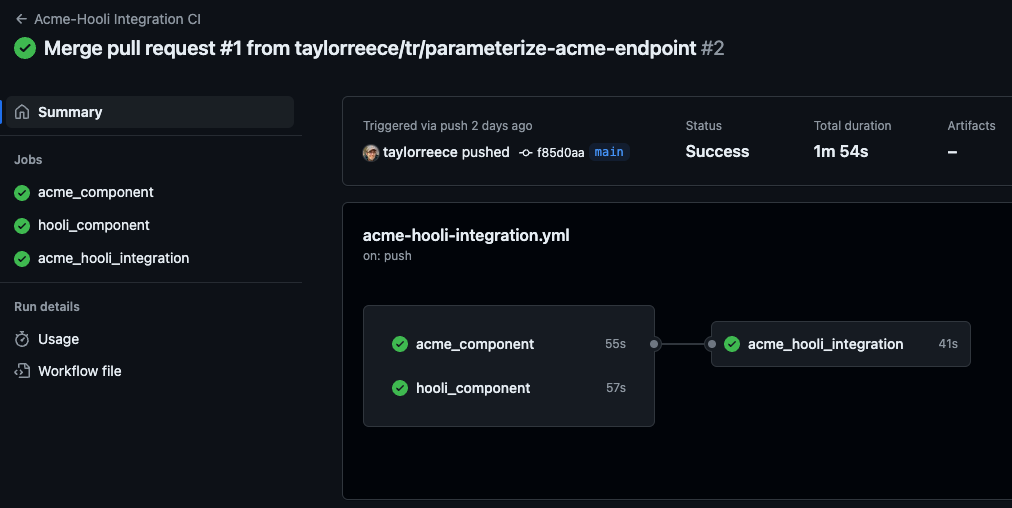

GitHub Actions waits until the component jobs are complete before starting the integration job.
